Miniature Linear Guides/Long Blocks/Light Preload:Related Image
■Precautions for Use
Blocks are equipped with retainers (wire) to prevent balls from falling off.
For how to handle the blocks, see >>P.525.
Radial clearances and accuracies are not guaranteed if the blocks and rails are interchanged from the original set combinations.
Straight grooves are provided on datum planes.
Be sure to match the datum lines when using.
Rails cannot be connected end to end.
The accuracy of Linear Guides is guaranteed after mounting the rail (after fastening screws on the rail and pushing it onto the datum plane).
Minor bending of the rail will be adjusted after being mounted and will not affect the performance.

■Accessory
• H6 comes with Number 0, Class 1 Phillips button head screws (M2x6).
• H8 comes with cap screws (M2x6).

■Others
• Filled with Lithium soap based grease (Multemp Grease PS2 by Kyodo Yushi Co., Ltd. ).
• For operating life calculation, see >>P.527.
• For operating life calculations, use our free calculation software from http://download.misumi.jp/mol/fa_soft.html.

 Material
Hardness
Type L Dimension Number of Blocks
Light Preload Slight Clearance
High Grade Precision Grade Standard Grade
Industry
Standard Materials
Stainless Steel
56HRC~
SSELB SSELBV SSELBZ Selectable 1
SSEL2B SSEL2BV SSEL2BZ 2
SSELBL SSELBLV SSELBLZ Configurable 1
SSEL2BL SSEL2BLV SSEL2BLZ 2
Carbon Steel
58HRC~
SELB SELBV SELBZ Selectable 1
SEL2B SEL2BV SEL2BZ 2
SELBL SELBLV SELBLZ Configurable 1
SEL2BL SEL2BLV SEL2BLZ 2

Heat Resistant Temperature: -20 ~ 80°C
H6 is for stainless steel (High Grade) only.

Specifications

Part Number L
    SSELB10
Miniature Linear Guides/Long Blocks/Light Preload:Related ImageRSELB10
Miniature Linear Guides/Long Blocks/Light Preload:Related ImageSSELB10L
Miniature Linear Guides/Long Blocks/Light Preload:Related ImageSSELB10G




275
75
75
75
(LTBC Plating)
(L Type Greased)
(G Type Greased)

LTBC Plating and various Grease types available as alternative.
>> P.531

Part Number L Block Dimension Guide Rail Dimension
Type H W L1 B C Sxℓ L2 K Cb W1 W2 H1 Ca Counterbored Hole F G
d1xd2xh
Dimensions in ( ) are for 2-Block Type. 6 40~100
(70)
12 21 8 M2x1.5 13.3 4.5 0.3 5 3.5 4 0.3 2.4×3.5×1 15 5
Stainless Steel
Industry Standard Specifications
SSELB
SSEL2B
SSELBL
SSEL2BL
Carbon Steel
SELB
SEL2B
SELBL
SEL2BL


SSELBV
SSEL2BV
SSELBLV
SSEL2BLV

SELBV
SEL2BV
SELBLV
SEL2BLV


SSELBZ
SSEL2BZ
SSELBLZ
SSEL2BLZ

SELBZ
SEL2BZ
SELBLZ
SEL2BLZ
8 40~130
(85)
17 32 12 13 M2x2.5 22 6.5 0.3 7 5 4.7 0.3 2.4×4.2×2.3 15 5
10 55~275
(95)
20 40 15 16 M3x3 29 7.8 0.3 9 5.5 5.5 0.3 3.5x6x3.5 20 7.5
13 70~470
(120)
27 45.8 20 20 M3x3.5 31.8 10 0.5 12 7.5 7.5 0.5 3.5x6x4.5 25 10
16 110~670
(150)
32 58.3 25 25 M3x4 43.3 12 0.5 15 8.5 9.5 0.5 3.5x6x4.5 40 15
20 160~700
(220)
40 67.7 30 30 M4x6 52.3 15 0.5 20 10 11 0.5 6×9.5×5.5 60 20
H L Unit Price
Stainless Steel Carbon Steel
SSELB SSEL2B SSELBZ SSEL2BZ SELB SEL2B SELBZ SEL2BZ
6 40
55
70
85
100
8 40
55
70
85
100
115
130
10 55
75
95
115
135
155
175
195
215
235
255
275
13 70
95
120
145
170
195
220
245
270
295
320
345
370
395
420
445
470
16 110
150
190
230
270
310
350
390
430
470
510
550
590
630
670
20 160
220
280
340
400
460
520
580
640
700

■L Dimension Configurable Type (1mm Increment)

H Unit Price
Stainless Steel Carbon Steel
SSELBL SSEL2BL SELBL
SELBLZ
SEL2BL
SEL2BLZ
SSELBLZ SSEL2BLZ
6
8
10
13
16
20

For calculation of L Dimension Configurable Type (1mm Increment), add the above amount to the unit price of the Selectable Type longer than, and closest to this L Dimension Configurable Type.

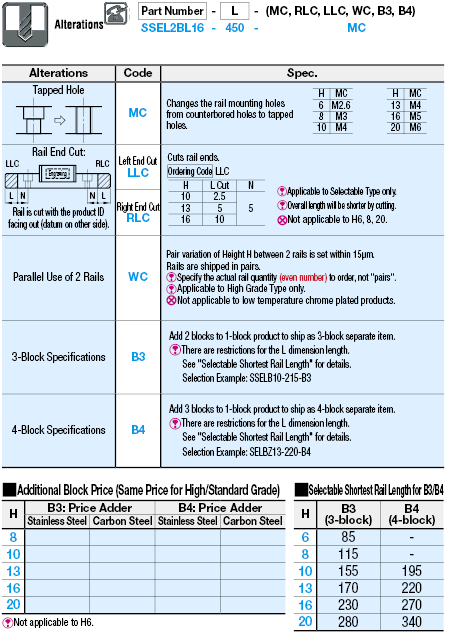

Alterations

Miniature Linear Guides/Long Blocks/Light Preload:Related Image
